Cellular Network Scanner 5G

Model #: 910060

Designed for the future of wireless connectivity, the scanner quickly identifies nearby towers, different local carrier networks, and the strength and quality of different frequencies, including 5G. The scanner detects and analyzes low band frequencies and frequencies of C-Band and CBRS signals using either LTE or 5GNR modulation. Use it to optimize the design and installation of a cellular repeater solution, from the planning phase to testing the completed system.

The Cell LinQ meter app works in tandem with the scanner and allows you to view, tune and store 3G, 4G, and 5G tower data and carriers. A survey is performed by linking the Cell LinQ meter to the Cell LinQ app via Bluetooth on either an iOS or Android supported device.

Features

• Scans all carriers regardless of the carrier phone running the app Provides comprehensive scanning of 4/5/12/13/14/25/66/71/77, and 48 frequency bands
• Scans 5G, including C-Band CBRS signals
• Identifies 5GNR signals
• Backwards compatible with 4G (LTE)
• Identifies individual carriers and towers
• Effortless reporting of 5G SA and NSA signals
• Offers details on location, tower ID, distance to tower, and more Pinpoints active carriers and geo-maps any active cells within range Captures all scan results, including time stamps for A/B comparisons Links via Bluetooth to iOS or Android with the Cell LinQ app from WilsonPro
• Exports data as .csv files for easy use in Excel

Kit Includes

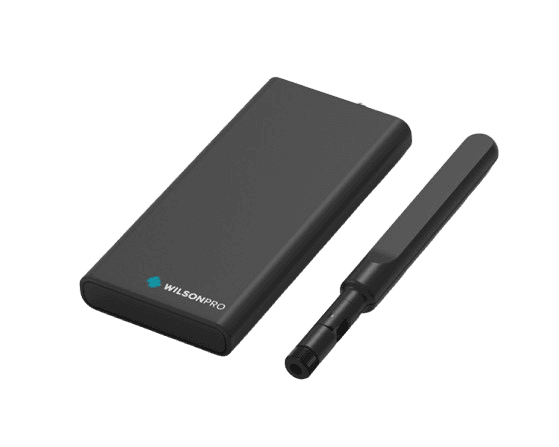

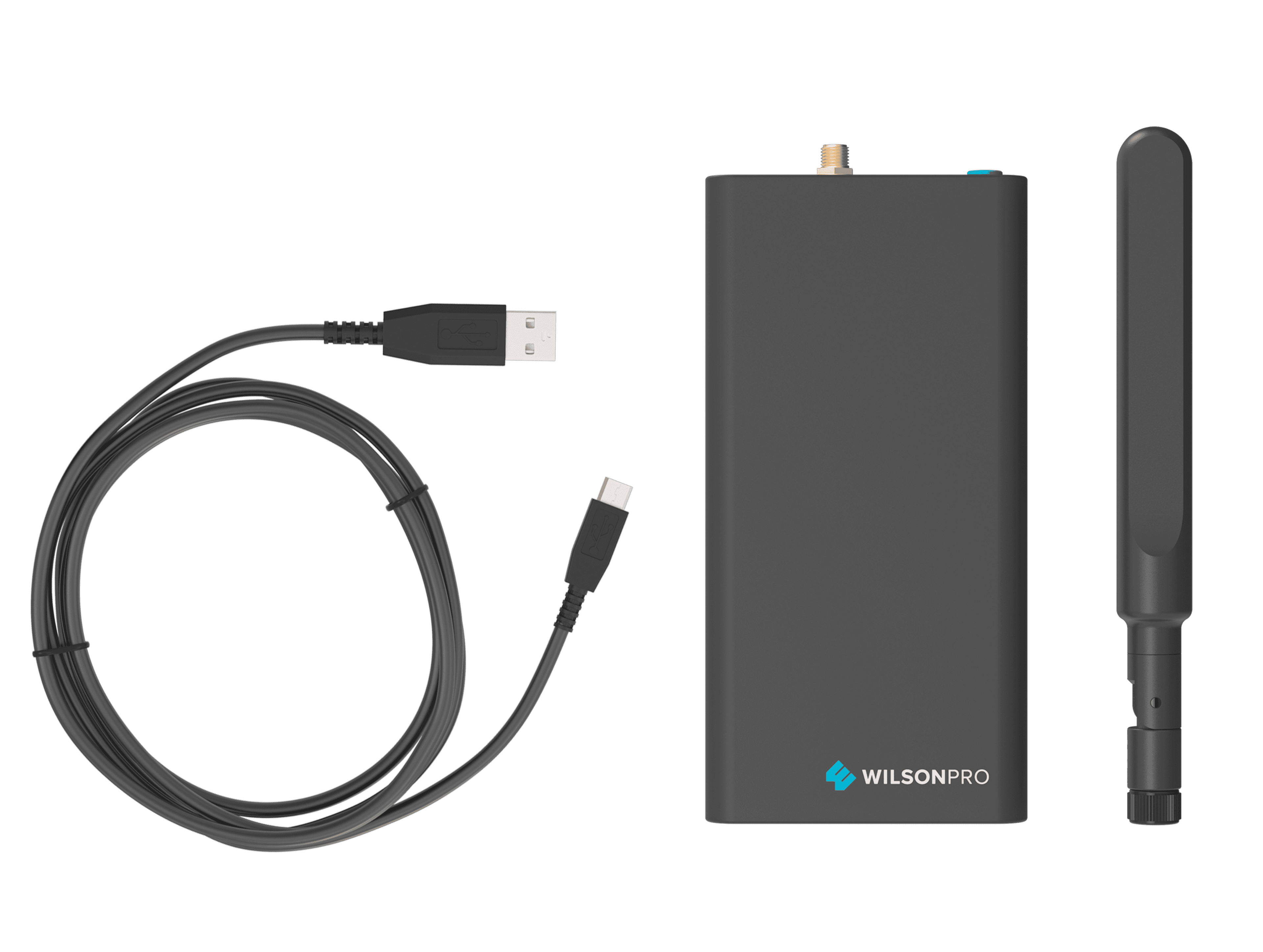

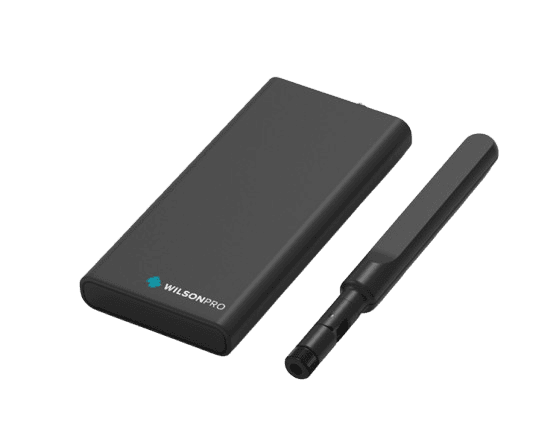

• Cellular Network Scanner 5G and Antenna
• USB-A Charger
• USB-A to USB-C Charging Cable
• SMA-N-Male 3’ Jumper
• Durable Meter Carrying Case
